T-Lab R3 Omni
T-Lab's R3 Omni pushes the limits of what a titanium road bike can deliver. The steps forward are significant. Starting with a uniquely profiled frame design that generates class-leading responsiveness. Its enhanced torsional stiffness results in ultra-presice handling. Its compact back triangle further optimises agility while accomodation up to a 35c tire. The R3 Omni is even available in your favourite colour. This is not your grandpa's titanium bike.
bikes? Want a quick quote?
Get it straight from the source.
Key Features
Unique frame design optimizes multi-strata performance while accommodating a tire clearance of up to 700X35c.
Exclusive, future-proof design offers an exponential advantage with regards to stiffness, shifting precision and adaptability.
Made completely to order, in-house, based on rider specifications and preferences.
Standard BB-386 titanium bottom bracket shell optimizes lateral stiffness where it counts. T-Lab’s meticulous post-machining ensures a “creak-free” ride and increase the lifespan of BB's.
R3 Omni frameset*: US$3,400
R3 Omni complete bike, featuring:
- SHIMANO 105 (R7100-12sp) 2X
- US$4,600
- SHIMANO Ultegra Di2 (R8100-12sp) 2X
- US$5,800
- SHIMANO 105 Di2 (R7150-12sp) 2X
- US$5,000
- SRAM Force AXS E-TAP (12sp.) 2X
- US$5,900
*Includes fork and headset and thru-axels
- Average Frame Weight: 1280g (Size SMALL; frame only, no options)
- Headtube: 1 1/8” – 1 1/2” (Integrated/Tapered)
- Fork: Full Carbon (tapered 1 1/8” – 1 1/2”) Axle to Crown: 383mm; Rake: 48mm; 12 X 100mm axle
- Seatpost: 27.2mm
- Front Derailleur: "Braze-on" type
- Bottom bracket: BB-86 (standard)
- Brake Type: Disc (flat mount)
- Rear Axle: 142x12mm
- Wheel Size: 700C
- Maximum Tire Width: 35c*(700); 42 (650b)
*Tire width may vary depending on tire/wheel manufacturer and model - Standard Sizes : XS, S, M, L, XL
- Available in Omni Road geometry
- Custom geometry/sizing also available ($500 upcharge)
- Frame compatible with Shimano, SRAM and Campagnolo groupsets featuring disc brakes
- Lifetime warranty (with regards to manufacturer’s defects)

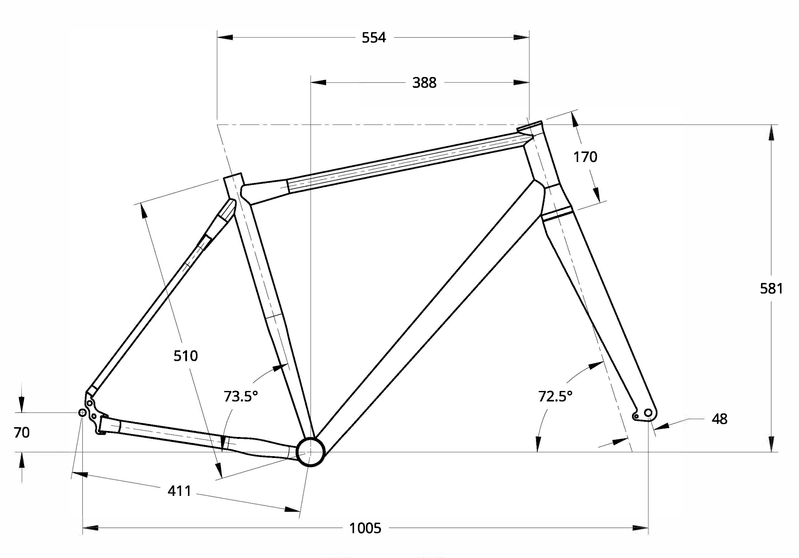

| Frame Size | Unit | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Average Cyclist Height | ft-in | (52): 5’-1” to 5’-4” | (54): 5’-5” to 5’-8” | (56): 5’-9” to 6’-0” | (58): 6’-0” to 6’-4” | (60): 6’-4” to 6’-6” |
| Standover Height | mm | 721 | 738 | 775 | 801 | 820 |
| Seat Tube Angle | deg | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube Length (center-to-top) | mm | 450 | 480 | 510 | 540 | 560 |
| Top Tube Length (horizontal) | mm | 522 | 534 | 554 | 570 | 587 |
| Head Tube Angle | deg | 71 | 72 | 72.5 | 72.5 | 72.5 |
| Head Tube Length* | mm | 130 | 150 | 170 | 190 | 210 |
| Frame Stack | mm | 537 | 560 | 581 | 600 | 619 |
| Frame Reach | mm | 369 | 374 | 388 | 398 | 410 |
| Bottom Bracket Drop | mm | 70 | 70 | 70 | 70 | 70 |
| Fork Rake | mm | 48 | 48 | 48 | 48 | 48 |
| Front Center Distance | mm | 585 | 588 | 604 | 620 | 637 |
| Trail | mm | 67 | 61 | 58 | 58 | 58 |
| Chain Stay Length | mm | 411 | 411 | 411 | 411 | 411 |
| Wheelbase | mm | 986 | 989 | 1005 | 1021 | 1038 |
| For XXS and XXL orders, contact us for custom sizing | ||||||
*Head Tubes are Integrated (1-1/8 –1-1/2 ; 45-52 X 45°)
| SHIMANO 105 Mech. (R7100-12sp) 2X | SHIMANO Ultegra Di2 (R8100-12sp) 2X | SRAM Force AXS e-Tap 2X | |
|---|---|---|---|
| Frame | T-Lab R3 Omni (2024) | ||
| Fork | RD (carbon) | ||
| Crankset | 50-34; 165/170/172.5/175 | 46-33/48-35; 165/170/172.5/175 | |
| Cassette | 11-34 | 10-33/10-36 | |
| Brakeset | BR-R7170 | BR-R8170 | - |
| Centerlock Rotors | SM-RT70 - 160mm | RT-800-160mm (F), 140mm (R) | RT-CLX-R-A1-160mm (F), 140mm (R) |
| Wheelset 700C | BOYD Rouleur | ||
| Tire | Pirelli P7 Sport -28c, 32c | ||
| Cockpit +* | |||
| Handlebar | FSA Alloy | ||
| Seatpost | FSA Alloy | ||
| Stem | FSA Alloy | ||
| Saddle | WTB Volt | ||
| H-Bar Tape | FSA Ultracork Handlebar Tape | ||
*Based on availability from our suppliers, some equivalent substitutions may occur.
